Modbus Slave / Modbus TCP Master - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xEthernet; 1xRS485; 1xRS232 |
| Data Rates Modbus TCP | 10/100 Mhz autosensing |
| Data Rates Modbus RTU | up to 115200 bps |
| Max Distance | Modbus TCP: 100m; Modbus RTU:1200m @ 115200 bps |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

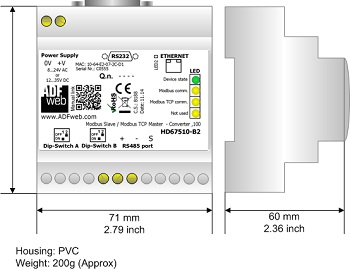

| Dimensions | 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67510 |
| ORDER CODE: | HD67510-B2 |
