IEC 61850 Client / J1939 - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet; 1xCAN |
| CAN protocol | J1939 |
| IEC 61850 protocol | Client |
| Data Rates J1939 | Up to 1Mbps |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing |
| J1939 connector | 3way 5mm terminal block |
| IEC 61850 connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

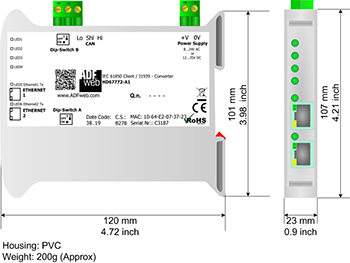

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67772 |
| ORDER CODE: | HD67772-A1 |
