Modbus Master / Modbus MultiSlave - Converter (3 xRS485 ports)
( Possibility to connect two Modbus Masters to one/more slaves ) ( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 3xRS485 |
| Data Rates RS485 | Up to 115200 bps |
| RS485 connector | 3way 5mm terminal block |
| Power Supply | 8...19V AC; 8...35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

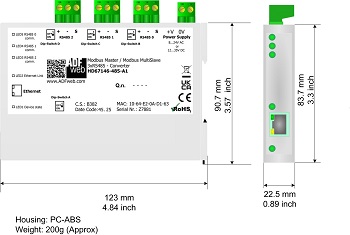

| Dimensions | 120x23x107 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software: | SW67146 |
| ORDER CODE: | HD67146-485-A1 |
