Modbus TCP Slave / Modbus TCP Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet |
| Ethernet protocol | Modbus TCP Slave |
| Data Rates Modbus | 10/100 Base-T Autosensing |
| Ethernet connector | RJ45 |
| Modbus connector | 3way 5mm terminal block |
| Power Supply | 8...19V AC; 8...35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

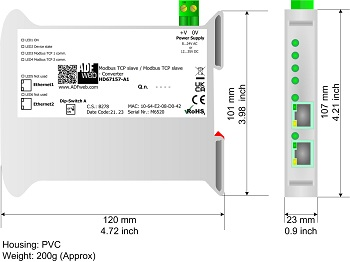

| Dimensions | 120x23x107 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software: | SW67157 |
| ORDER CODE: | HD67157-A1 |
