RS485 / RS232 / Optic Fiber - Repeater - Extender bus line
( Fiber connection, topology possible: Poin to point )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS485; 2xST Fibres optic; 1xRS232 |
| Data Rates Serial RS232/RS485 | Up to 115200 bps |
| Data Rates Optic Fibres | Up to 1 Mbps |
| Serial RS232 connector | Terminal Block |
| Serial RS485 connector | Terminal Block |
| Fibres Optic connector | ST |
| Power supply | 10...19V AC ; 10...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

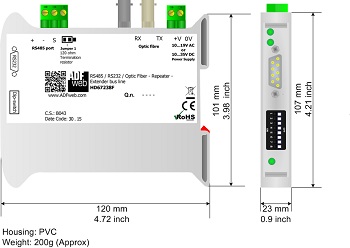

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| ORDER CODE: | HD67238F |
