Modbus Slave / Modbus TCP Master - Converter
( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )( Modbus Slave on RS485 )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS485, 2xEthernet |
| Data Rates Serial | Up to 115200bps |
| Data Rates Ethernet | 10/100 Base-T Autosensing |
| Serial connector | 3way 5mm removable screw terminal |
| Ethernet connector | RJ45 |
| Power supply connector | 2way 5mm removable screw terminal |
| Power supply | 8..24V AC ; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

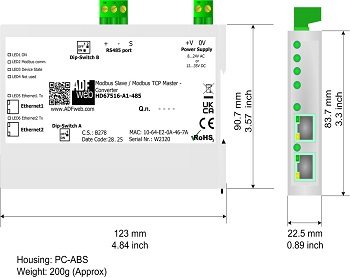

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67516 |
| ORDER CODE: | HD67516-A1-485 |
