PROFIBUS Master / Modbus Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xPROFIBUS;1xRS485; 1xEthernet; |
| Data Rates PROFIBUS | Up to 6M bps |
| Data Rates Modbus | Up to 115200 bps |
| Data Rates Ethernet | 10/100 Base-T Autosensing |
| PROFIBUS connector | D-SUB9 Female |
| RS485 connector | 3way 5mm removable screw terminal |
| Ethernet connector | RJ45 |
| Power supply connector | 2way 5mm removable screw terminal |
| Power supply | 8...24V AC ; 12...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

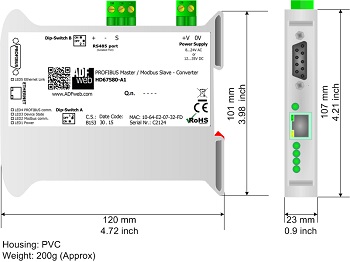

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67580 |
| ORDER CODE: | HD67580-A1 |
