PROFINET / NMEA 0183 - Converter
( Ethernet Switch Inside for enter/exit connection,
Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xNMEA 0183; 2xPROFINET |
| Data Rates NMEA 0183 | 4800 bps |
| Data Rates PROFINET | 10/100 Base-T Autosensing |
| NMEA 0183 connector | 3way 5mm terminal block |
| PROFINET connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

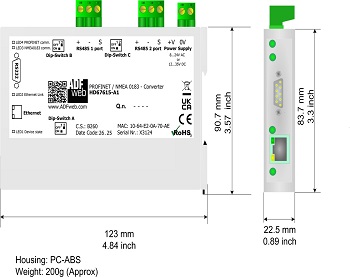

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67615 |
| ORDER CODE: | HD67615-A1 |
