NMEA 0183 / Mosbus TCP Slave - Converter
( Ethernet Switch Inside for enter/exit connection,
Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS232; 1xRS422; 1xRS485; 1xEthernet |
| Data Rates Ethernet | 10/100 Base-T Autosensing |
| Data Rates RS422 | Up to 115200 bps |
| Data Rates RS232 | Up to 115200 bps |
| Data Rates RS485 | Up to 115200 bps |
| RS422 connector | 5way 5mm terminal block |
| RS232 connector | D-SUB9 Male |
| RS485 connector | 3way 5mm terminal block |
| Ethernet connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

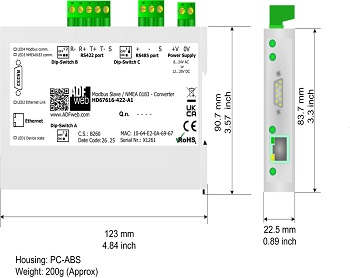

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67617 |
| ORDER CODE: | HD67617-422-A1 |
