HD67667-485-A1
EtherNet/IP Master / Serial (RS485) - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
Specifications:
Ports: 2xEthernet,1xRS485
EtherNet/IP protocolEtherNet/IP Master
RS485 protocolSerial
Data Rates EtherNet/IP10/100 Base-T Autosensing
Data Rates SerialUp to 115200bps
EtherNet/IP connectorRJ45
Serial connector3way 5mm terminal block
Power supply8...19V AC ; 8...35V DC
Operating temperature-40C/+85C (-40F/+185F)

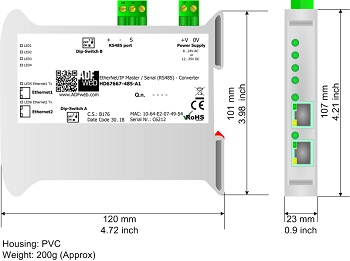

Dimensions120x23x107 (DxWxH)
Weight200g approx
Mechanical fixingDIN Rail montage
SoftwareSW67667
ORDER CODE:HD67667-485-A1
