Modbus Master / MQTT - Converter
( Housing type: B, Terminal Blocks Connectors,Modbus port: RS232)
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xSerial; 1xEthernet; |
| Serial protocol | Modbus Master (RS232) |
| Ethernet protocol | MQTT |
| 2way 5mm terminal block | |
| MQTT connector | RJ45 |
| Data Rates Modbus | Up to 115200 bps |
| Data Rates MQTT | 10/100 Base-T Autosensing |
| Power supply | 8..24V AC 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

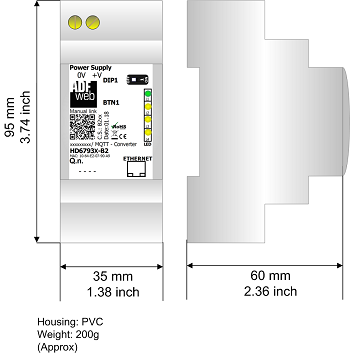

| Dimensions | 36x60x95 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67933 |
| ORDER CODE: | HD67933-2-B2 |
