LoRaWAN / IEC61850 Client - Converter
( LoRaWAN @ 915 MHz, Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xAntenna; 1xEthernet; |
| Ethernet protocol | IEC61850 Client |
| Antenna protocol | LoRaWAN 915MHz |
| Data rates IEC61850 | 100 Base-T Autosensing |
| Data rates LoRaWAN | programmable |
| IEC61850 Connector | RJ45 |
| LoRaWAN Connector | SMA Female Antenna |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 15..21V AC ; 18..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

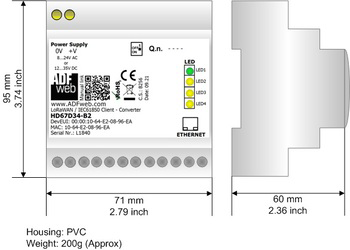

| Dimensions | 71x60x95 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE: | SW67D34 |
| ORDER CODE: | HD67D34-B2-915MHz |
