PROFIBUS Slave / HTTP/REST Client - Converter
(Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Service: | |
| Ports: | 1x PROFIBUS; 1xEthernet; |
| PROFIBUS protocol | PROFIBUS Slave |
| Ethernet + LTE protocol | HTTP/REST Client |
| PROFIBUS connector | D-Sub 9 Female |
| HTTP/REST connector | RJ45 |
| Data Rates PROFIBUS | Up to 6 Mbps |
| Data Rates HTTP/REST | 10/100 Base-T Autosensing |
| Power supply | 8..24V AC 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

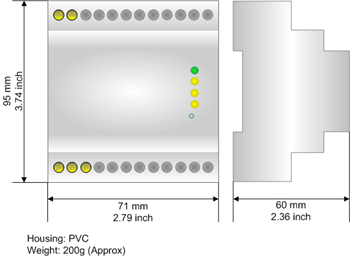

| Dimensions | 70x60x95 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67G46 |
| ORDER CODE: | HD67G46-B2 |
