RS232 / Optic Fibres - Converter
( Daisy chain fiber connection, topology possible: Multi-Drop, Double Loop )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 4xST Fibres optic; 1xRS232 |
| Data Rates Serial RS232 | Up to 115200 bps |
| Serial RS232 connector | Terminal Block |
| Fibres Optic connector | ST |
| Optic Fibres cable requirement | 62.5/125 µm 50/125 µm |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

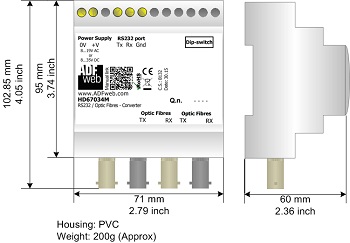

| Dimensions | 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| ORDER CODE: | HD67034M |
