CANopen / SNMP Manager - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xEthernet |
| CANopen protocol | CANopen |
| SNMP protocol | SNMP Manager |
| CANopen connector | 3way 5mm terminal block |
| SNMP connector | RJ45 |
| Data Rates CANopen | Up to 1 Mbit/s |
| Data Rates SNMP | 10/100 MHz Autosensing |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

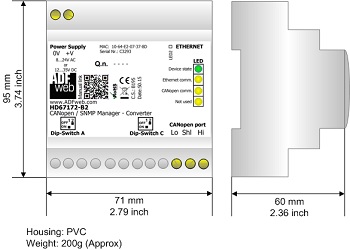

| Dimensions | 71x60x95 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67172 |
| ORDER CODE: | HD67172-B2 |
