CAN - Repeater - Extender bus line
( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xCAN |
| CAN2.0 connector: | MINI-FIT |
| DATA rates | Up to 1Mbps |
| Power supply | 8..19V AC ; 8..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

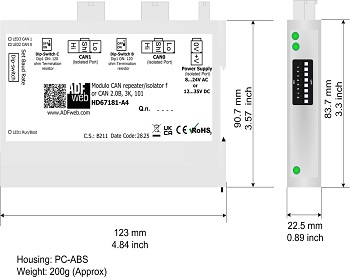

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| ORDER CODE | HD67181-A4 |
