CAN / Optic Fiber - Repeater - Extender bus line
( High Performance )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 2x Optic Fibres |
| CAN2.0 connector: | Terminal block |
| Optic Fibres connector: | ST 820 um |
| DATA rates CAN2.0 | Up to 1Mbps |
| DATA rates optic Fibres | 1Mbps |
| Power supply | 10...19V AC ; 10...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

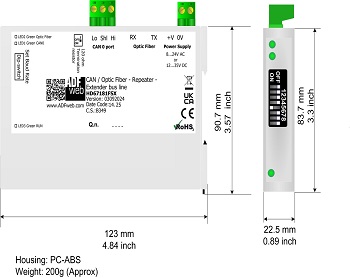

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| ORDER CODE | HD67181FSX |
