CAN Analyzer Hardware and Software
( PC Interface port: Ethernet )
Prices and Shipping info
|
|
| Specifications: | |
| Standard | ISO 11898 |
| Ports: | 1xCAN; 1xEthernet |
| CAN Baudrate | Up to 1Mbps |
| Isolation | 2000V DC |
| CAN Connector | Removable Screw Terminal |
| Power supply | 8...19V AC; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

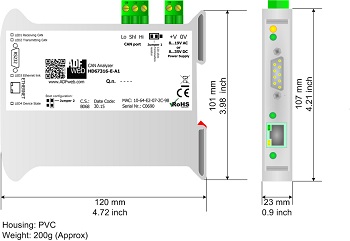

| Dimensions | 120x36x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67216 |
| ORDER CODE: | HD67316-E-A1 |
