Modbus TCP Slave / Modbus Master - Converter
( Housing type: A, Terminal Blocks Connectors, Modbus Master on RS422 )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS422; 1xEthernet; |
| Ethernet Protocol | Modbus TCP Slave |
| RS422 Protocol | Modbus Master |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing |
| Data Rates Modbus | Up to 115200 kbps |
| Modbus TCP connector | RJ45 |
| Modbus connector | 5way 5mm terminal block |
| Power supply connector | 2way 5mm terminal block |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

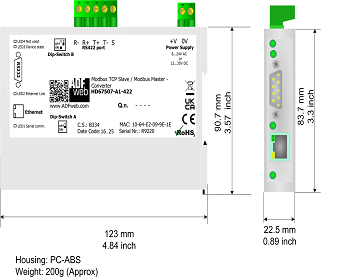

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67507 |
| ORDER CODE: | HD67507-A1-422 |
