Modbus TCP / Modbus ASCII - Converter
( Housing type: A, Terminal Blocks Connectors, Modbus ASCII port: RS232 )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS232; 1xEthernet |
| Data Rates Modbus ASCII | Up to 115200 bps |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing |
| Modbus ASCII connector | D-SUB 9 Male |
| Modbus TCP connector | RJ45 |
| Power supply | 8..19V AC ; 8..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

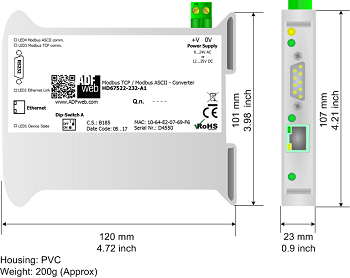

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67522 |
| ORDER CODE: | HD67522-232-A1 |
