PROFIBUS Slave / Modbus TCP Master - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xEthernet; 1xPROFIBUS |
| Data Rates PROFIBUS | Auto Baudrate |
| Data Rates Modbus | 10/100 Mbps Autosensing |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

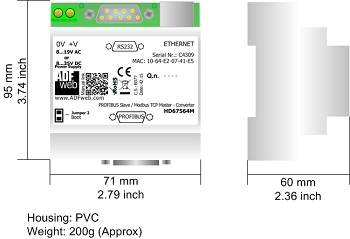

| Dimensions | 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67564 |
| ORDER CODE: | HD67564M |
