EtherNet/IP Slave / Modbus TCP Master - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet |
| EtherNet/IP protocol | EtherNet/IP Slave |
| Modbus TCP protocol | Modbus TCP master |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing |
| EtherNet/IP connector | RJ45 |
| Modbus TCP connector | RJ45 |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

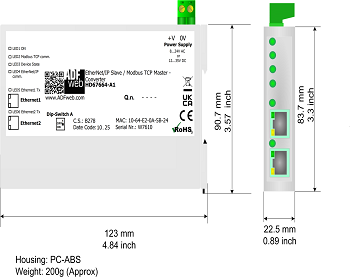

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67664 |
| ORDER CODE: | HD67664-A1 |
