EtherNet/IP Master / Modbus slave (RS422) - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet,1xRS422 |
| EtherNet/IP protocol | EtherNet/IP Master |
| RS422 protocol | Modbus slave |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing |
| Data Rates Modbus | Up to 115200bps |
| EtherNet/IP connector | RJ45 |
| Modbus connector | 3way 5mm terminal block |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

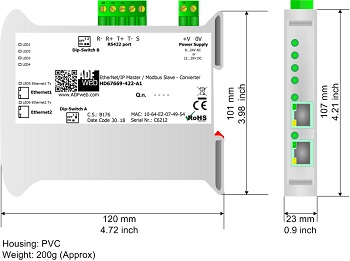

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67669 |
| ORDER CODE: | HD67669-422-A1 |
