DALI / DMX - Converter
( Housing type: B, Fixed Terminal Blocks )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xDALI; 1xRS485 |
| DALI protocol: | DALI |
| RS485 protocol: | DMX512 |
| Data Rates DALI: | 1200 bps |
| Data Rates DMX: | 250 kbps |
| DALI Connector: | 2way 5mm terminal block |
| DMX Connector: | 3way 5mm terminal block |
| Power supply: | 8..24V AC; 12..35V DC |
| Power supply Connector: | 2way 5mm terminal block |
| Operating temperature: | -40°C/+85°C (-40°F/+185°F) |

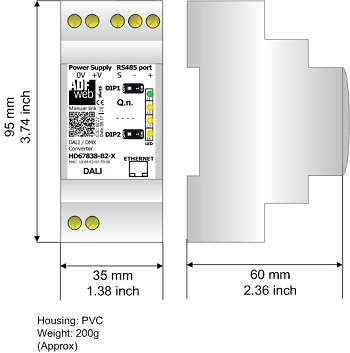

| Dimensions: | 36x60x95 mm(DxWxH) |
| Weight: | 200g approx |
| Mechanical fixing: | DIN Rail montage |
| Software | SW67838 |
| ORDER CODE: | HD67838-B2 |
