DALI / Ethernet/IP - Converter
( Housing type: B, Fixed Terminal Blocks )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xDALI; 1xEthernet |
| DALI protocol: | DALI |
| Ethernet protocol: | Ethernet/IP |
| Data Rates DALI: | 1200 bps |
| Data Rates Ethernet/IP: | 10/100 Base-T Autosensing |
| DALI Connector: | 2way 5mm terminal block |
| Ethernet/IP Connector: | RJ45 |
| Power supply: | 8..24V AC; 12..35V DC |
| Power supply Connector: | 2way 5mm terminal block |
| Operating temperature: | -40°C/+85°C (-40°F/+185°F) |

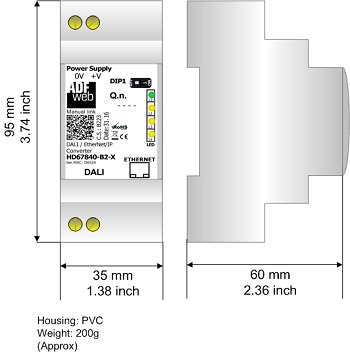

| Dimensions: | 36x60x95 mm(DxWxH) |
| Weight: | 200g approx |
| Mechanical fixing: | DIN Rail montage |
| Software | SW67839 |
| ORDER CODE: | HD67840-B2 |
