J1939 / HART Master - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xHART;; |
| CAN protocol | J1939 |
| HART protocol | HART FSK Master + 4..20mA Analog Input |
| Data rates J1939 | Up to 1 Mbps |
| Data rates HART | 1200bps |
| J1939 Connector | 3way 5mm terminal block |
| HART Connector | 2way 5mm terminal block |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 8..24V AC; 12..35V DC |
| HART Power Supply | Additional power supply 24 V DC for HART devices |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

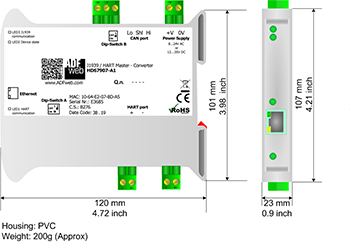

| Dimensions | 120x23x107 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE: | SW67907 |
| ORDER CODE: | HD67907-A1 |
