NMEA0183 / MQTT - Converter
( Housing type: B, Terminal Blocks Connectors ,port :RS232)
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS232; 1xEthernet |
| EtherNet protocol | MQTT |
| RS232 protocol | NMEA0183 |
| Data Rates NMEA0183 | 115200 bps |
| Data Rates MQTT | 10/100 Base-T Autosensing |
| NMEA0183 connector | 3way 5mm terminal block |
| MQTT connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

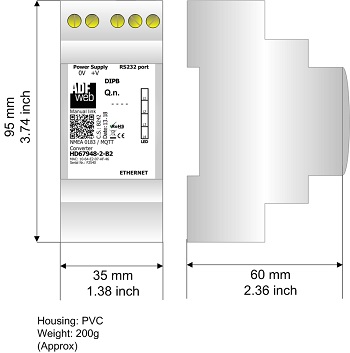

| Dimensions | 36x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67948 |
| ORDER CODE: | HD67948-2-B2 |
