IO-Link Slave / Modbus Slave - Converter
( Housing type: B, Terminal Blocks Connectors,Modbus port: RS485, IO-Link port Class A )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xIOLink; 1xRS485; 1xEthernet; |
| RS232 protocol | Modbus Slave |
| IO-Link protocol | IO-Link Slave |
| Data rates Modbus | Up to 115200 bps |
| Data rates IO-Link | 4800 bps - 38400 bps - 230400 bps |
| Modbus Connector | 3way 5mm terminal block |
| IO-Lin Connector | 1x-IO-Link A; M12 |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

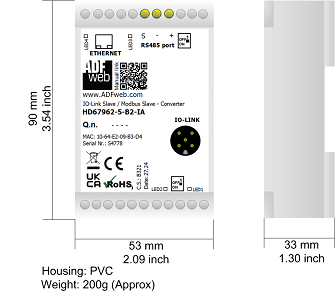

| Dimensions | 60x71x95 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE: | SW67962 |
| ORDER CODE: | HD67962-5-B2-IA |
