BACnet MSTP Slave / PROFINET Master - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS485; 1xEthernet |
| PROFINET protocol | PROFINET Master |
| BACnet protocol | BACnet MSTP Slave |
| Data Rates PROFINET | 100 Base-T autosensing |
| Data Rates BACnet | Up to 115200 bps |
| PROFINET connector | RJ45 |
| BACnet connector | 3way 5mm removable screw terminal |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

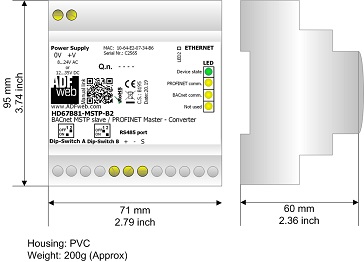

| Dimensions | 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67B81 |
| ORDER CODE: | HD67B81-MSTP-B2 |
