J1939 / MQTT Broker- Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xEthernet; |
| CAN protocol | J1939 |
| Ethernet protocol | MQTT |
| J1939 connector | 3way 5mm terminal block |
| MQTT connector | RJ45 |
| Data Rates J1939 | Up to 1Mbps |
| Data Rates MQTT | 10/100 Base-T Autosensing |
| Power supply | 8..24V AC 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

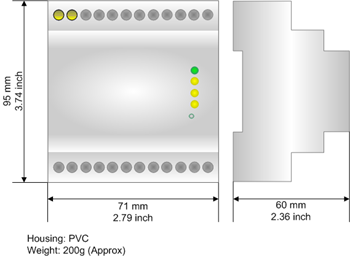

| Dimensions | 70x60x95 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67C17 |
| ORDER CODE: | HD67C17-B2 |
