LoRaWAN / PROFIBUS Slave - Converter
( LoRaWAN @ 868 MHz, Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xAntenna; 1xPROFIBUS; 1xEthernet; |
| PROFIBUS protocol | PROFIBUS Slave |
| Antenna protocol | LoRaWAN 868MHz |
| Data rates PROFIBUS | Up to 6Mbps |
| Data rates LoRaWAN | programmable |
| PROFIBUS Connector | D-SUB9 Female |
| LoRaWAN Connector | SMA Female Antenna |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 15..21V AC ; 18..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

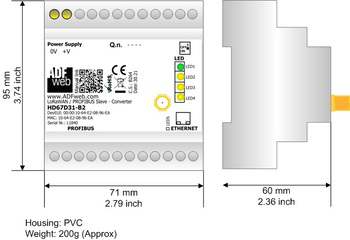

| Dimensions | 71x60x95 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE: | SW67D31 |
| ORDER CODE: | HD67D31-B2-868MHz |
