HD67038-25-A1
RS485 / RS232 / Ethernet - Converter
( Housing type: A )
Prices and Shipping info
Specifications:
Ports: 1xEthernet; 1xRS232; 1xRS45
Ethernet ConnectorRJ45
RS232 Connector D-Sub connector, type DE-9 Male
RS485 Connector3way 5mm terminal block
Data Rates SerialUp to 115200 bps
Data Rates Ethernet:10/100 Base-T Autosensing
Power supply connector2way 5mm terminal block
Power supply8..24V AC; 12..35V DC
Operating temperature-40°C/+85°C (-40°F/+185°F)

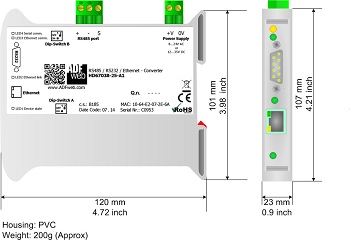

Dimensions120x23x107 mm(DxWxH)
Weight200g approx
Mechanical fixingDIN Rail montage
SoftwareSW67038
ORDER CODE:HD67038-25-A1
