PROFIBUS / Serial - Converter
( Serial port: RS232 or RS485 )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xPROFIBUS 1xRS232; 1xRS485 |
| Data Rates PROFIBUS | Auto baudrate |
| Data Rates Serial | Up to 115200 bps |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

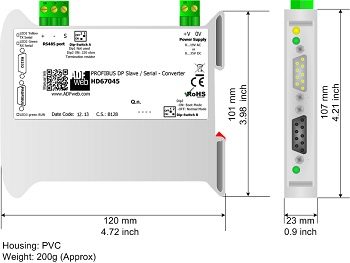

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67045 |
| ORDER CODE: | HD67045 |
