J1939 / CAN - Converter
( Housing type: A, Terminal Blocks connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xJ1939 |
| Data Rates J1939 | Up to 1 Mbps |
| Data Rates CAN | Up to 1 Mbps |
| J1939 Connector | 3way 5mm terminal block |
| CAN Connector | 3way 5mm terminal block |
| Power Supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

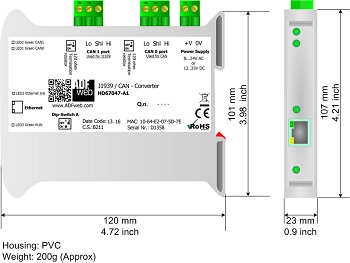

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Software | SW67047 |
| ORDER CODE: | HD67047-A1 |
