M-Bus Slave / Modbus Master - Converter
( Modbus Master Port: RS232 )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xM-Bus; 1xRS232 |
| Data Rates M-Bus | Up to 38400 bps |
| Data Rates Modbus RTU | Up to 115200 bps |
| Power supply | 8...21V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

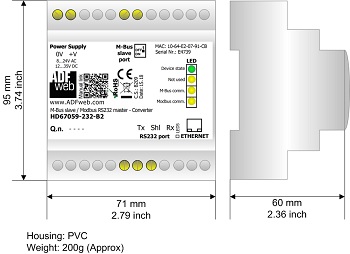

| Dimensions | 106x58x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67059 |
| ORDER CODE: | HD67059-232-B2 |
