EtherNet/IP / SNMP Manager - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet |
| EtherNet/IP protocol | EtherNet/IP |
| SNMP protocol | SNMP Manager |
| EtherNet/IP connector | RJ45 |
| SNMP connector | RJ45 |
| Data Rates EtherNet/IP | 10/100 MHz Autosensing |
| Data Rates SNMP | 10/100 MHz Autosensing |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

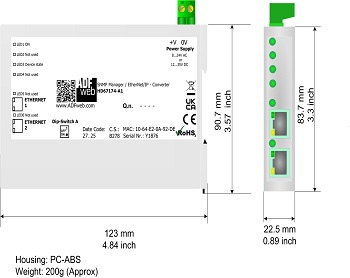

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67174 |
| ORDER CODE: | HD67174-A1 |
