CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable)
( High Performance )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN 2.0; 2xOptic Fibres |
| CAN2.0 connector: | Terminal block |
| Optic Fibres connector: | ST 820 um |
| DATA rates CAN2.0 | Up to 1 Mbps |
| DATA rates optic Fibres | 1Mbps |
| Serial connector: | 3way 5mm terminal block |
| Ethernet connector | RJ45 |
| Power supply connector | 2way 5mm removable screw terminal |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

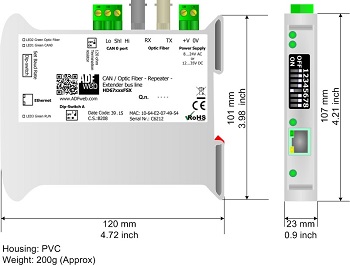

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE | SW67221FSX |
| ORDER CODE | HD67221FSX |
