CANopen / Modbus TCP Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCANopen; 1xEthernet |
| CAN connector | Terminal block |
| Modbus TCP connector | RJ45 |
| Data Rates CANopen | Up to 1Mbps |
| Ethernet Protocol | TCP |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

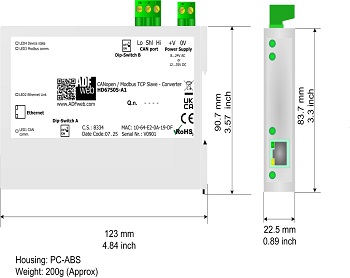

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67505 |
| ORDER CODE: | HD67505-A1 |
