CAN / Modbus Master - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xRS485 |
| CAN connector | 3way 5mm terminal block |
| Modbus connector | 3way 5mm terminal block |
| Data Rates CAN | Up to 1 Mbps |
| Data Rates Modbus | Up to 115200 bps |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

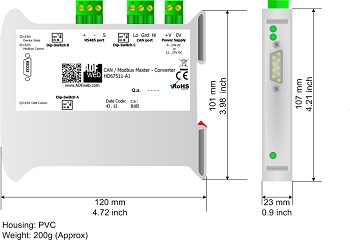

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67511 |
| ORDER CODE: | HD67511-A1 |
