RS232/RS485 / Modbus TCP - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xEthernet; 1xRS485; 1xRS232 |
| RS232 connector | D-SUB9 |
| RS485 connector | Terminal block |
| Ethernet connector | RJ45 |
| Data Rates RS232 | Up to 115200 bps |
| Data Rates RS485 | Up to 115200 bps |
| Power supply | 8...19V AC ; 8...35V DC |
| Power supply connector | 2way 5mm removable screw terminal |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

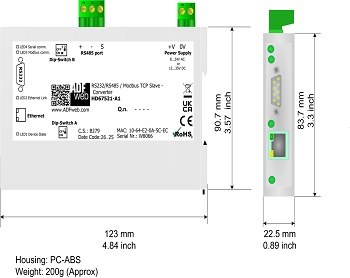

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67521 |
| ORDER CODE: | HD67521-A1 |
