PROFIBUS Slave / Modbus Master - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xPROFIBUS 1xRS232; 1xRS485 |
| Data Rates PROFIBUS | Up to 12Mbps |
| Data Rates Serial | Up to 115 Kbps |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

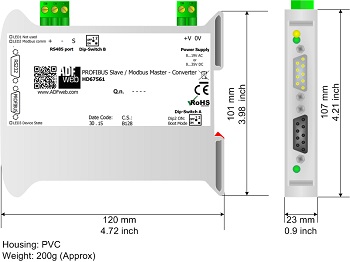

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67561 |
| ORDER CODE: | HD67561 |
