CAN / WiFi - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xWi-Fi; 1xCAN;1xEthernet |
| Data Rates CAN | Up to 1 Mbps |
| Data Rates Wi-Fi | 802.11b/g standard |
| CAN connector | 3way 5mm terminal block |
| Wi-Fi connector | Integrated connector |
| CAN Protocol | CAN 2.0A and CAN 2.0B |
| Wi-Fi Protocol | TCP or UDP |
| Power supply connector | 2way 5mm terminal block |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

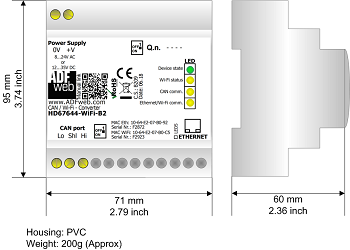

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67644 |
| ORDER CODE: | HD67644-WiFi-B2 |
