IEC 61850 Server / CAN - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet; 1xCAN; |
| CAN protocol | CAN 2.0A and CAN 2.0B |
| IEC 61850 protocol | Server |
| Data Rates CAN | Up to 1Mbps |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing |
| CAN connector | 3way 5mm terminal block |
| IEC 61850 connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

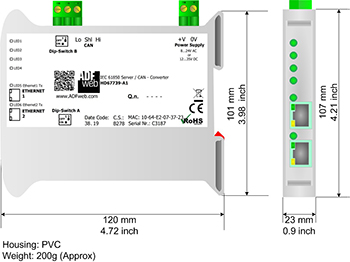

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67739 |
| ORDER CODE: | HD67739-A1 |
