CANopen / KNX - Converter
( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xKNX; 1xCAN |
| KNX protocol | KNX TP |
| CAN protocol | CANopen |
| Data Rates KNX | 9600 bit/s |
| Data Rates CAN | Up to 1 Mbps |
| KNX connector | KNX Bus connector |
| CAN connector | 3way 5mm terminal block |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

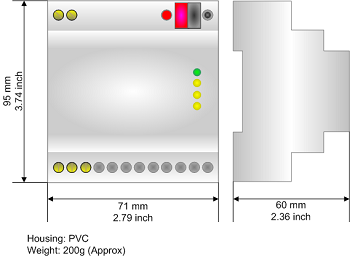

| Dimensions | 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67804 |
| ORDER CODE: | HD67804-KNX-B2 |
