PROFINET Master/ DeviceNet Slave - Converter
( Ethernet Switch Inside for enter/exit connection,
Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 2xPROFINET |
| CAN protocol | DeviceNet Slave |
| Ethernet protocol | PROFINET Master |
| Data Rates CAN | Up to 500Kbps |
| Data Rates PROFINET | 100 Base-T Autosensing |
| CAN connector | 3way 5mm terminal block |
| PROFINET connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

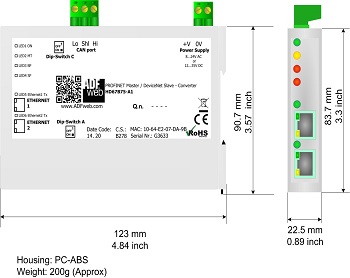

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67B75 |
| ORDER CODE: | HD67B75-A1 |
