HD67C56-MSTP-B2
EnOcean /BACnet MSTP Slave - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
Specifications:
Ports: 1xEthernet;
BACnet ProtocolBACnet MSTP Slave
Ethernet protocolEnOcean
Data Rates BACnet10/100 Base-T Autosensing
Data Rates EnOcean10/100 Base-T Autosensing
BACnet connectorRJ45
EnOcean connectorRJ45
Power supply8..24V AC; 12..35V DC
Power supply connector2way 5mm terminal block
Operating temperature-40° to +85° (-40°F to +185°F)

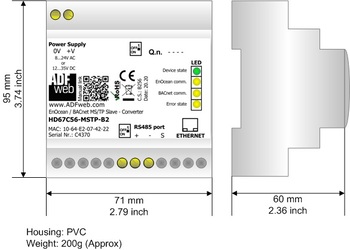

Dimensions70x60x95 (DxWxH)
Weight200g approx
Mechanical fixing35mm DIN Rail montage
SoftwareSW67C56
ORDER CODE:HD67C56-MSTP-B2
