EnOcean / DeviceNet Slave - Converter
( Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xEthernet;1xCAN |
| DeviceNet Protocol | DeviceNet Slave |
| Ethernet protocol | EnOcean |
| Data Rates DeviceNet | Up to 1Mbps |
| Data Rates EnOcean | 10/100 Base-T Autosensing |
| DeviceNet connector | 3way 5mm terminal block |
| EnOcean connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

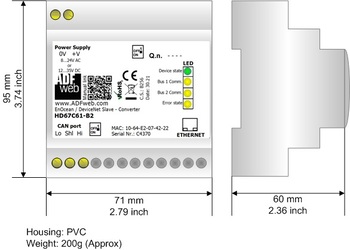

| Dimensions | 70x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67C61 |
| ORDER CODE: | HD67C61-B2 |
