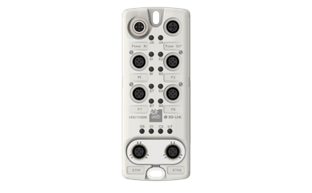

EtherCAT Slave / IEC61850 Server for Structured Cabling IP69K - Converter
( IIoT port MQTT, OPC UA, M12 Connectors, Color Light Grey )
Prices and Shipping info
|
|
| General Info: | |
| MODEL: | HD67E15-SCK |
| Daisy chain application | Enter-exit connection for power supply and Ethernet |
| Electrical data for Power Supply (US) | |
| Connector type: | M12 (T-coded) |
| Power supply range: | 18..30 V DC |
| Total current capacity on power supply daisy chain: | 12 A |
| Electrical data for Aux Power Supply (UA) | |
| Connector type: | M12 (T-coded) |
| Power supply range: | 24 V DC |
| Total current capacity on power supply daisy chain: | 12 A |
| EtherCAT/Ethernet interface | |
| Connector type: | M12 (V-coded) |
| Number of Ethernet ports: | 2 |
| Transmission standard: | 100Base-TX |
| Transmission rate: | 10/100 Mbps |
| Protocols for process: | IEC 61850, EtherCAT |
| Protocols for IoT: | MQTT, OPC UA Client, OPC UA Server (configurable) |
| Operating conditions | |
| Temperature: | -40...85°C |
| Protection: | IP69K |
| Test and approvals | |
| EMC: | EN 61000-6-2, EN 61000-6-4 |
| Mechanical data | |
| Dimensions: | 34 x 60 x 151 |
| Weight: | 300g approx |
| Type of mounting: | Backplane mounting |
| Color: | Light Grey |
| Software | SW67E15 |
| ORDER CODE: | HD67E15-SCK |
