EtherCAT / PROFINET – Converter
EtherCAT / S7comm - Converter


This serie of products allows you to integrate a EtherCAT with a PROFINET net.

In case of Siemens PLCs (or equivalent), it is possible to use S7comm protocol to get and set data into them from EtherCAT system.
S7comm protocol is a Siemens protocol: this protocol is very good if it is necessary to get and set data from/to the PLC without changing the configuration of the PLC itself.
This protocol will work as a debug protocol and the automation below the PLC will continue to work without any interferance.

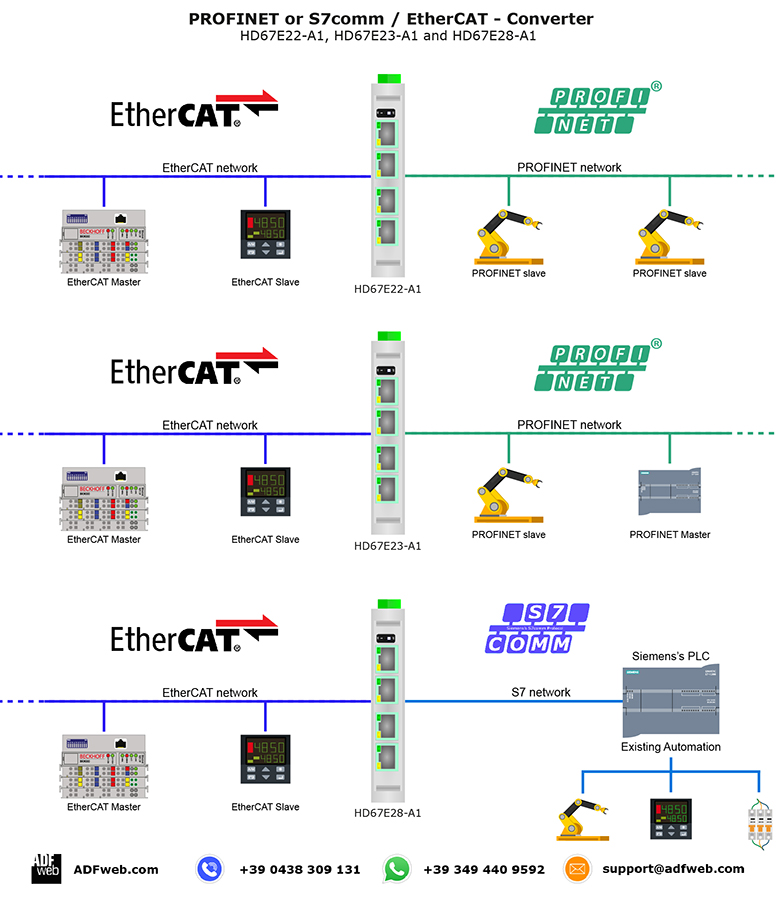

The HD67E22-A1 are EtherCAT Slave / PROFINET Master Converters.
They allow to interface an EtherCAT Master (like a Beckhoff PLC, OMRON PLC etc..) with some PROFINET Slaves.


The HD67E23-A1 are EtherCAT Slave / PROFINET Slave Converters.
They allow to interface an EtherCAT Master (like a Beckhoff PLC, OMRON PLC etc..) with a PROFINET Master net (for example a PLC, SCADA System...) in order to exchange the informations between the networks..


The HD67E28-A1 is a EtherCAT / S7comm Converter and it allows to publish and get the data from/to a Siemens PLC (or equivalent) to a EtherCAT Gateway in order to exchange the informations between the networks without changing the configuration and stopping the automation of the PLC.


On EtherCAT side, there are 2 Ethernet ports for IN & OUT connections: they allow Line topology and Ring topology (for easy redundant communication).

Easy and fast integration of the Slave converters inside the Master configuration thanks ESI file, generated by FREE software compositor.

For other IO-Link converters..
◀ PREVIOUS PRICE INFO NEXT ▶

Order Code Price info Details Description User manual Operating Temperature
EtherCAT / PROFINET
HD67E22-A1 View EtherCAT / PROFINET Master - Converter
( EtherCAT Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors ) 		-40° to +85°
HD67E23-A1 View EtherCAT / PROFINET slave - Converter
( EtherCAT Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors ) 		-40° to +85°
EtherCAT / S7Comm
HD67E28-A1 View EtherCAT / S7Comm Client - Converter
( EtherCAT Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors ) 		-40° to +85°






Accessories:
Order Code   Description Details
AC34011   Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC View
AC34012   Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC View
AC34131   Patch Cross Cable Cat6 2 Meters View
