Gateway Advanced Energy Protocol to Modbus server TCP

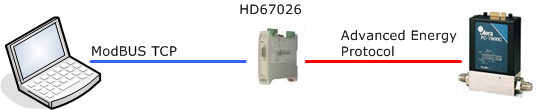

The Gateway Advanced Energy protocol to Modbus TCP slave is an electronic device that allows for information to be exchanged between a serial RS485 bus and Ethernet 10/100 bus through the Advanced Energy protocol and ModBUS TCP.
The Gateway Advanced Energy protocol to Modbus TCP slave can be easily configured through the configuration utility which allows for different projects to be handled, saved in your PC and downloaded to the device.

It is used for interface between ModBUS TCP and Advanced Energy protocol.

Specifications:
Standard:	ISO 11898 / ISO.IEC 11801
Ports:	1 x RS485 1 x RS232C 1 x Ethernet 10/100 Autosensing
Max Distance:	ModBUS TCP side:100 m Advanced energy protocol side:1200 m for 115K bps
Data Rates:	ModBUS TCP side:10/100 Mhz autosensing Advanced Energy protocol side::up to 115K bps
Isolation:	>2000 VDC
DIP Switch:	Different Baud Rate Setting
LED:	1 x Power indicator 2 x Signal indicator
Power:	24 VDC 200mA 12/18V AC; 50/60 Hz;200mA
Temperature:	Operating: -30° to +70° (-22 °F +158 °F) Storage: -40° to 80° (-40 °F +176 °F)
Humidity:	Operating:10% to 80%, non-condensing Storage: 5% to 90%, non-condensing
EMI Compliance:	EN 61000-6-2 FCC part 15 of Class A
Dimensions:	120x23x107 (DxWxH)
Weight:	200 g approx
Mechanical Fixing:	DIN 35 mm Rail montage

Benefits:

Configurable Gateway.

Designed for serious use.

Interfacing between ModBUS TCP
and Advanced Energy Protocol

Electrical isolation between buses.

Protocol Conversion.

Main Features:

Slave ModBUS TCP.

Possible Slave ModBUS RTU.

Rail DIN mounting.

MAX baud rate 115Kb
(Advanced Energy protocol side).

Easily Configurable with PC software.

Ordering Information:

Gateway:
Slave ModBUS TCP to Advanced Energy Protocol	HD67026
Slave ModBUS TCP to Advanced Energy Protocol
Accessories:
Software Configurator:	SW67026
